FPOW-50W-II
Discontinued

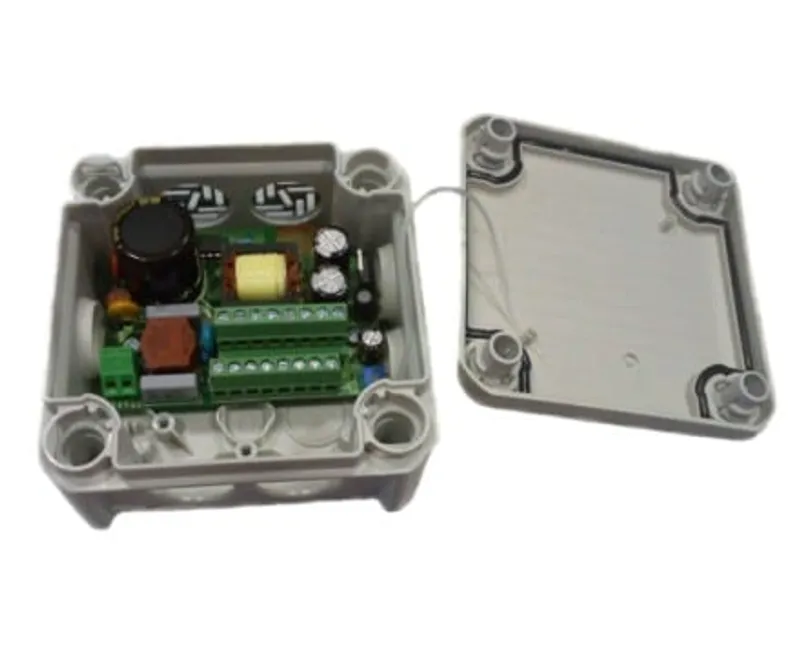

A mains supply for CCTV installations, feeding up to eight cameras from separate 12V outputs rated 0.5A each, 50W in total. The overload protection on each output is set at 0.45A. Built on a board with an aluminium heatsink, supplied in a grey plastic housing. Designed in 2011. No longer manufactured.
Specifications
| Supply voltage | 230V AC |
|---|---|
| Output voltage | 12V DC |
| Output current | 8 × 0.5A |
| Output power | 50W |
Documents
- FPOW-50W-II data sheet PDF · Srpski / English
